HS High Heat Rejection Infrared Reflective Film
A precise quote for this product requires the installation area. Feel free to inquire now.
Three Guarantees for On-site Installation: Guaranteed no bubbling, guaranteed no increase in cost, guaranteed heat insulation rate. Professional energy consultants will assess on-site.
Unit of measurement: 1 "Cai" (approx. 30.3 cm x 30.3 cm)
Warranty Period: HS Series 6 years
※This is a custom-made product and is not eligible for returns or exchanges.
Order Quantity and Basic Production Guidelines
Minimum Threshold: The minimum order quantity for each on-site job is 50 square feet.
Calculation for Orders Below Threshold: If the actual order quantity is less than 50 square feet, an additional charge of NT$70 per square foot will be applied to the difference in quantity.
Example: If you only order 30 square feet (20 square feet short of the 50 square foot threshold), in addition to the cost of the 30 square feet, an extra charge of 20 square feet × NT$70 will be applied for the unmet quantity.
HS High Heat Rejection Infrared Reflective Film
Reduce secondary radiation and effectively improve heat entry, heat insulation, power saving, and low internal reflection
Infrared reflective film insulation principle:
Infrared rays do not penetrate or absorb; instead, they are reflected. Only by reflection can the surface temperature of the glass be minimized. Because the heat on the glass surface is not high, the secondary radiation rate is also reduced. The simplest and most concrete data is fully reflected in the SC value in the test report.
Word Count Calculator
Length × Width ÷ 900 = "Cai" (Taiwanese unit for area). Enter window side dimensions to automatically calculate "Cai."
【Regarding Measurement】
Please note that the tape measure's head may be loose, and each ruler may have discrepancies during measurement. There may also be slight errors during cutting. The "silicone sealant" on door and window edges is mostly uneven. If you want the glass film to fit tightly, please add 1 cm to your measurement, then apply the film and trim off the excess with a utility knife. If you don't mind small gaps, you can just measure the actual dimensions. In this case, no trimming will be needed after application, making installation relatively simpler.
Insulation data & Product model

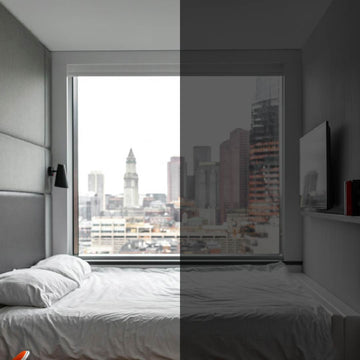

Thermal Insulation Data
Visible light transmittance: 12.14%
External reflectance: 15.1%
Internal reflectance: 6.9%
Infrared rejection rate: 89.92%
UV rejection rate: 99.9%
Total solar energy rejected: 63%
Shading coefficient (SC): 0.43

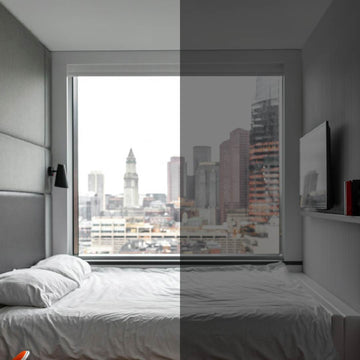

Thermal insulation data
Visible Light Transmittance: 27.04%
External Reflectance: 14.94%
Internal Reflectance: 12.56%
Infrared Rejection: 92.28%
UV Rejection: 99.9%
Total Solar Energy Rejected: 58%
Shading Coefficient (SC): 0.48

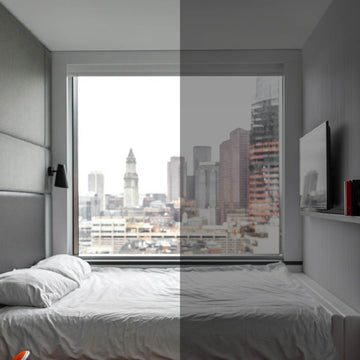

Thermal Insulation Data
Visible light transmittance: 31.85%
External reflectance: 14.92%
Internal reflectance: 15.51%
Infrared rejection: 91.94%
UV rejection: 99.9%
Total solar energy rejected: 56%
Shading coefficient SC: 0.5

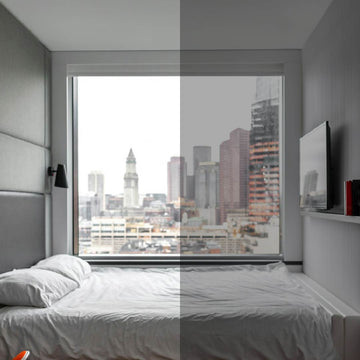

Thermal Insulation Data
Visible light transmittance: 51.23%
External reflectance: 29.34%
Internal reflectance: 23.67%
Infrared rejection rate: 94.04%
UV rejection rate: 99.9%
Total heat rejection: 59%
Shading Coefficient SC: 0.47
Superior thermal insulation core: Reflects, rather than absorbs, truly moving away from the heat source.
Red anti-reflection film insulation principle:
Infrared rays penetrate without being absorbed; instead, they are reflected. Only reflection can minimize the temperature of the glass surface. Because the glass surface temperature is not high, the secondary radiation rate also decreases accordingly, which is the simplest and most concrete data representation.
Ultra-clear view | Excellent light transmission, does not block natural light
It offers extremely high transparency and low-haze visual experience, maintaining clear views from indoors to outdoors without affecting natural light or the sense of openness. It is especially suitable for commercial offices, showrooms, and high-end residential glass.
One mask to solve all your skin concerns.
Wide range of applications
Shatterproof and Splash-Free: Enhanced Safety
Designed specifically for architectural glass, this product effectively reinforces glass structures. In the event of unexpected impacts, earthquakes, or explosions, it securely holds shattered fragments, preventing glass shards from scattering and reducing the risk of secondary injury.
Suitable for residences, commercial buildings, schools, medical facilities, and other locations requiring enhanced safety and protection.
